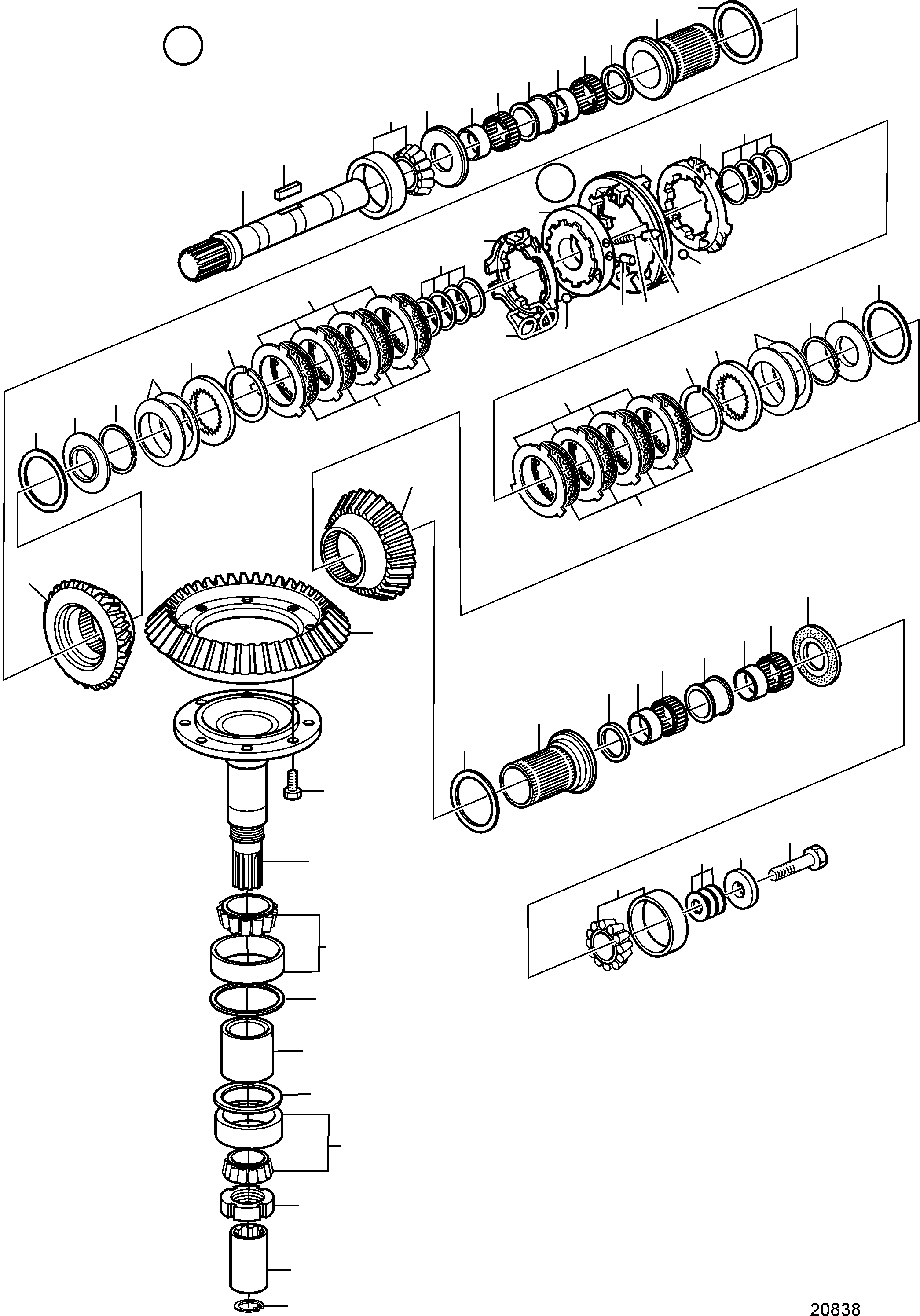

Upper Gear Unit Sail Boat Drive Unit 150S 150SR Components

1 2 3 4 5 6 7 8 9 10 11 11 11 11 11 12 13 13 13 13 13 13 14 15 16 17 18 19 20 21 21 21 21 21 21 21 22 23 24 25 26 27 28 29 30 30 31 32 32 32 32 32 33 34 35 36 37 37 37 37 37 38 39 39 39 39 39 40 41 42 43

#	Наименование	Код
1	Gear housing	888326
2	Input shaft	3843548
3	Key	3582591
4	Roller bearing	183834
5	Thrust washer	3582571
6	Inner race	3582904
7	Needle bearing	3582905
8	Spacer ring	3582906
9	Ring	3586558
10	Bushing	3586546
11	Shim	3586721
11	Shim	3582911
11	Shim	3582910
11	Shim	3582908
11	Shim	3586723
12	Gear set	3586547
13	Shim	948300
13	Shim	3582568
13	Shim	3586728
13	Shim	3586724
13	Shim	948299
13	Shim	948298
14	Spacer	3586555
15	Lock ring	3582917
16	Disc spring	3586557
17	End disc	3586556
18	Lock ring	3582577
19	Disc	3582579
20	Disc	3582578
21	Shim	3582581
21	Shim	3582583
21	Shim	3583429
21	Shim	3583430
21	Shim	3582872
21	Shim	3582580
21	Shim	3582582
22	Gear selector contro	3594258
23	Torsion spring	3582024
24	Plate	3586532
25	Guide sleeve	3594267
26	Ball	3582585
27	Spindle	3582590
28	Spring	3582588
29	Stop pin	3582589
30	Guide sleeve	3586525
30	Service kit, sliding sleeve	40005266
31	Plate	3586533
32	Shim	3582901
32	Shim	3582900
32	Shim	3586725
32	Shim	3586726
32	Shim	3586727
33	Washer	3582899
34	Screw	3808717
35	Shaft	3588826
36	Roller bearing	11041
37	Shim	3586729
37	Shim	3586730
37	Shim	3586731
37	Shim	3582875
37	Shim	3582874
38	Spacer	3586509
39	Shim	3586660
39	Shim	3586659
39	Shim	3586658
39	Shim	3586657
39	Shim	3582580
40	Lock nut	3586732
41	Hexagon screw	955271
42	Splined sleeve	3586676
43	Lock ring	3586678
